Dot Peen

Providing Det peen, Industrial marking & Engraving machines, Laser equipment and FA Solution

MNS series

HOME>Dot Peen>Desktop Dot peen marking machine>MNS series

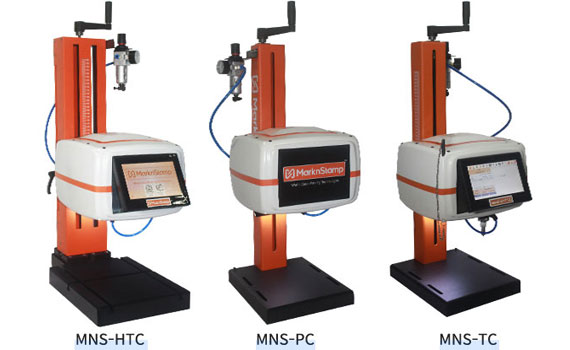

MNS series Table top dot peen Marking machine: High-quality pneumatic & magnetic Table top marking machine
for deep and permanent marking

Features

Machine specifications

MNS-HTC / EMHTC MNS-TC / EMTC MNS-PC / EMPC

Type Pneumatic or electric desktop marker

Marking area 120x100mm

Size 365x295x400mm 330x295x843mm 214.5x262.5x246.5mm

Weight 42kg 23kg 23kg

Controller Built-in controller Touchscreen Simple touch PC software connection

Stand type CF-17 Heavy Duty CF-01 basic stand

Column height 400mm

Language Over 20 languages supported including Korean

Power 24VDC 5A power adaptor

Communication I/O, RS232, ethernet

Accessories Name plate clamping device, Rotary device, Tiliting attachment, automatic Name plate feeder etc.

MNS-TC(Simple touch type) built-in software is simple UI. (QR code, CSV marking, scanner interface,
barcode printer link, various automatic variable code (date, time) function excluded)

Accessory

Various optional accessories including Rotary device, Name plate Clamping Device etc.

	MNS-HTC / EMHTC	MNS-TC / EMTC	MNS-PC / EMPC
Type	Pneumatic or electric desktop marker
Marking area	120x100mm
Size	365x295x400mm	330x295x843mm	214.5x262.5x246.5mm
Weight	42kg	23kg	23kg
Controller	Built-in controller Touchscreen	Simple touch	PC software connection
Stand type	CF-17 Heavy Duty	CF-01 basic stand
Column height	400mm
Language	Over 20 languages supported including Korean
Power	24VDC 5A power adaptor
Communication	I/O, RS232, ethernet
Accessories	Name plate clamping device, Rotary device, Tiliting attachment, automatic Name plate feeder etc.
MNS-TC(Simple touch type) built-in software is simple UI. (QR code, CSV marking, scanner interface, barcode printer link, various automatic variable code (date, time) function excluded)
