Gravo engraving machine
HOME>Engraving>CNC engraving machine>Gravo engraving machine
- Gravograph
engraving machine
CNC engraving machine - Outstanding CNC engraving machine based on
Gravograph’s reliability
Machine features
Machine specifications

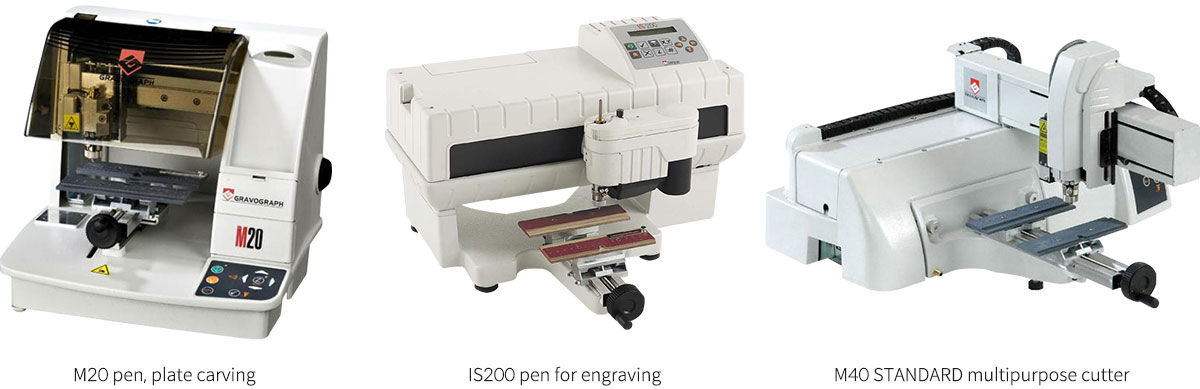

| M20 pen, plate engraving | IS200 pen for engraving | M40 STANDARD multipurpose engraving | |
|---|---|---|---|
| Engraving area | 100x100mm | 225x80mm | 305x210mm |
| Z-axis (height) | 30mm | 15mm | 40mm |
| Size / Weight | 340x310x310mm / 10kg | 500x400x295mm / 22kg | 550x510x320mm / 18kg |
| Motor power | 20W / 20,000rpm | 20W / 17,000rpm | 50W / 20,000rpm |
| Remark | Option: (Pen vice) Diameter 5 ~ 15mm | Engraving available on pen, lighter, cylinder, etc. |

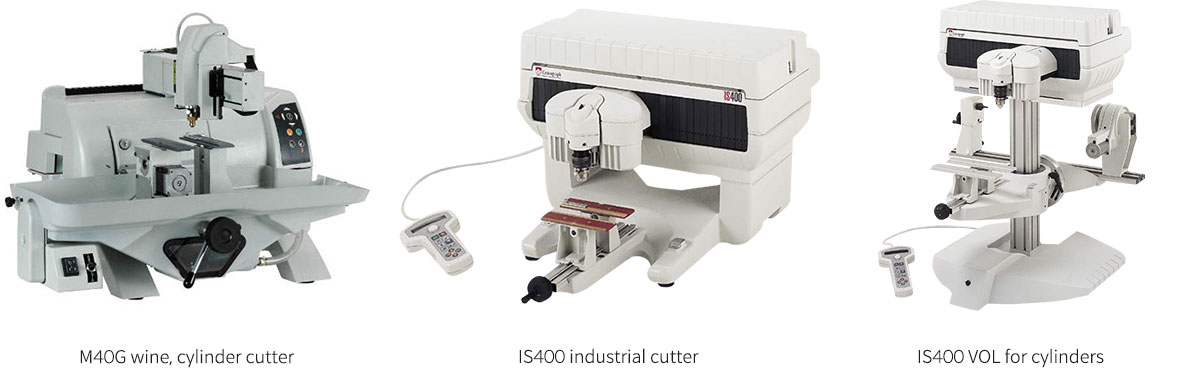

| M40G wine, cylinder engraver | IS400 industrial engraver | IS400 VOL for cylinders | |
|---|---|---|---|
| Engraving area | 305x210mm | 305x210mm | 305x210mm |
| Z-axis (height) | 40mm | 40mm | 40mm |
| Size / Weight | 730x540x540mm / 35kg | 435x810x893mm / 50kg | 900x815x840mm / 90kg |
| Motor power | 50W / 20,000rpm | 90W / 20,000rpm | 90W / 20,000rpm |
| Cylinder vice | maximum diameter 170mm | ||
| Maximum length | 450mm | 500mm | |
| Inclination angle | 10° | 45° | |
| maximum diameter | 120mm | ||
| Cylinder diameter | 20 ~ 350mm | ||
| Remark | Option 1 : T-soft table (314x404mm) Option 2 : Cylinder vice (maximum length 200m) |
Application samples
