Laser Cutting machine

HOME>Laser>Laser Machine>Laser Cutting machine

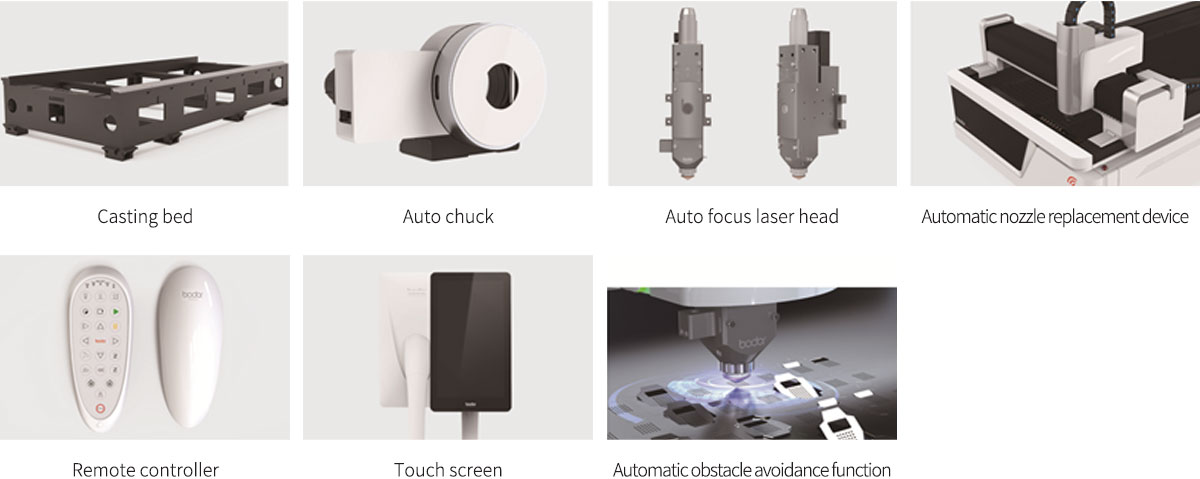

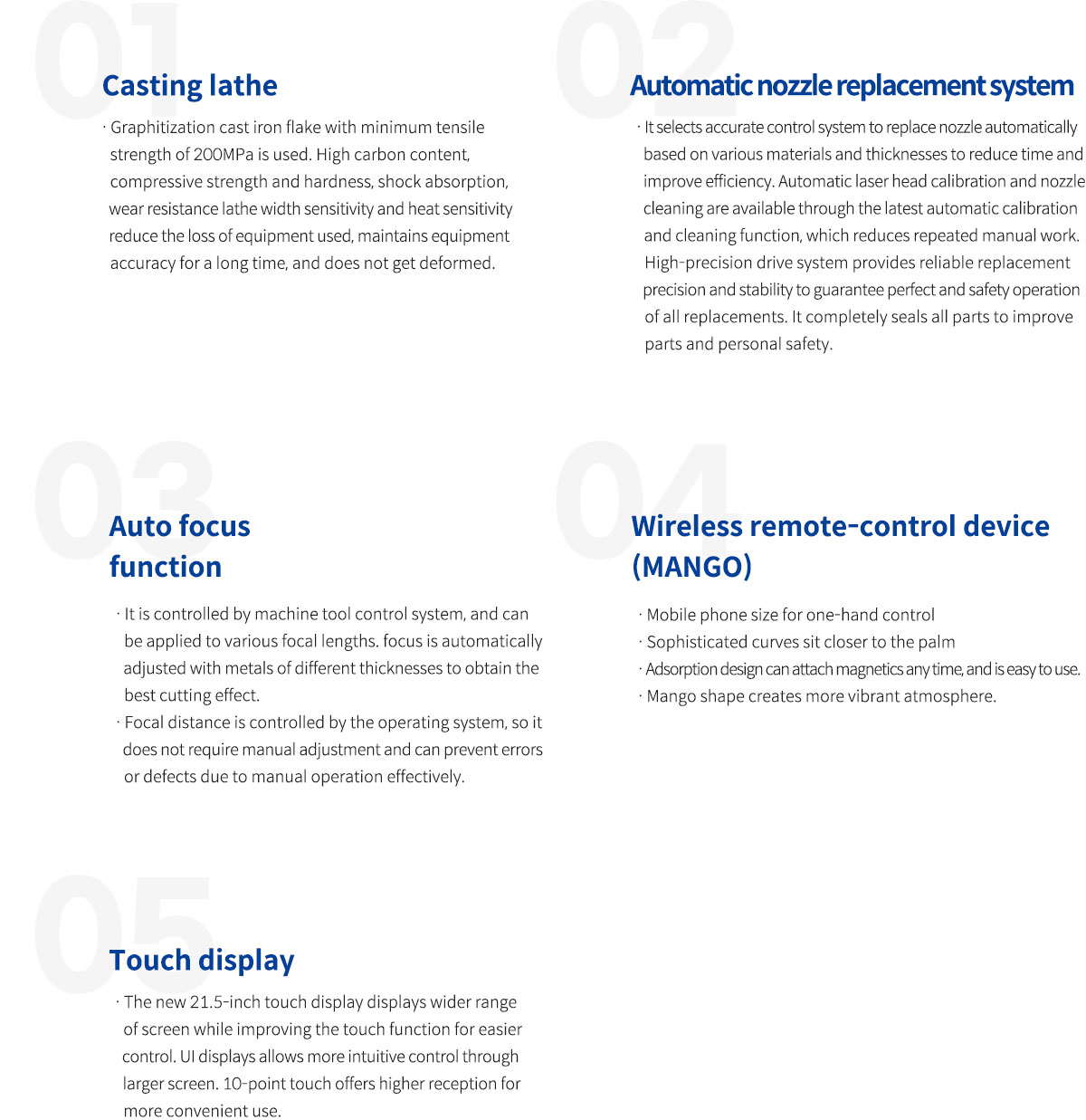

Equipment features

Equipment specification

Machine specifications

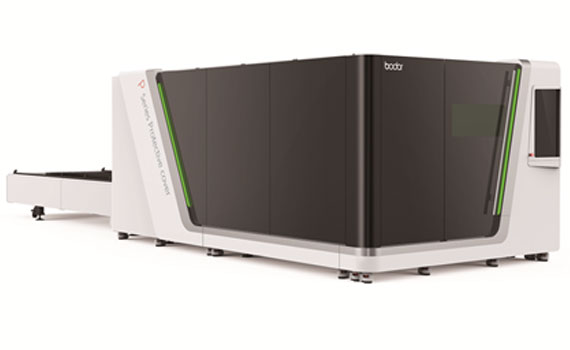

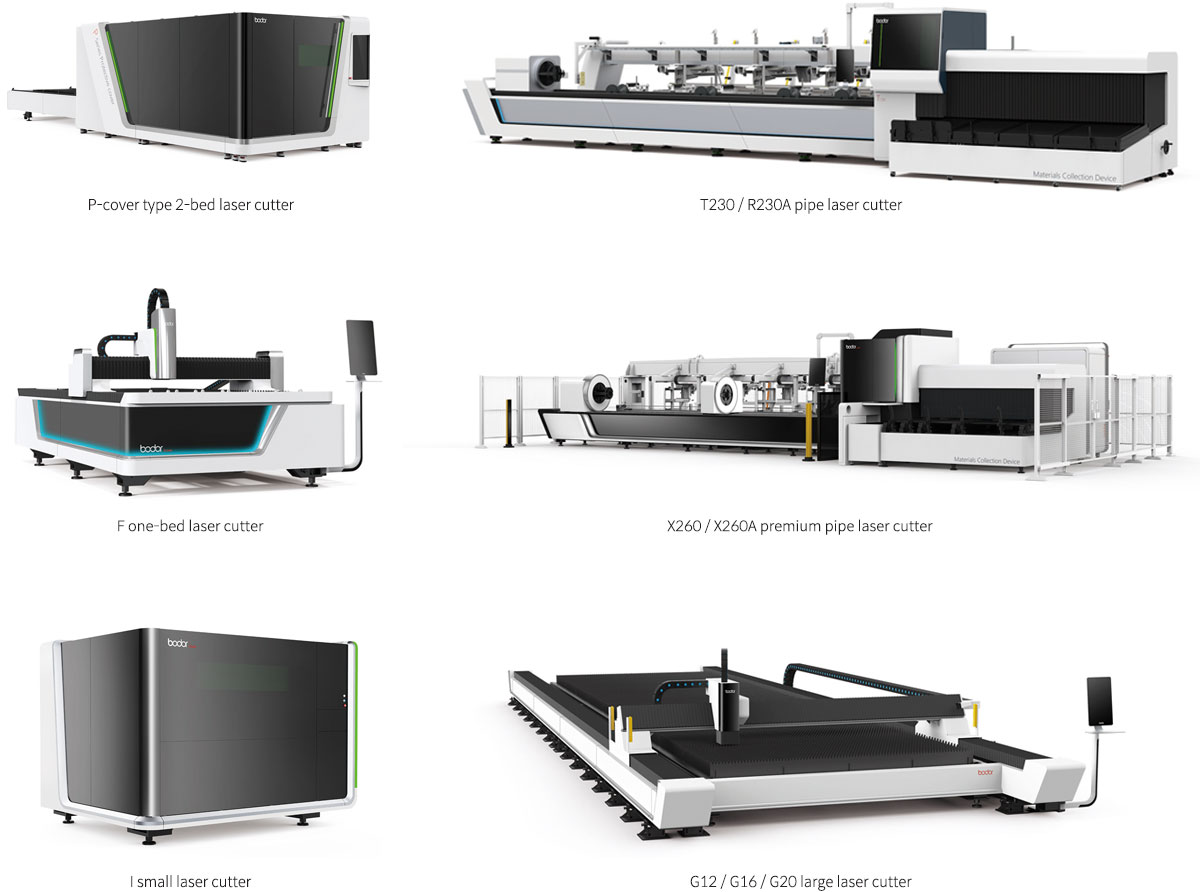

	P-cover type 2-bed laser cutter
Model	P3015	P4020	P6020	P6025	P8025
Exterior size	9950x3050x2300mm	12000x3700x2300mm	15000x4000x2300mm	15300x4500x2400mm	19700x4200x2400mm
Cutting size	3000x1500mm	4000x2000mm	6100x2000mm	6100x2500mm	8100x2500mm
Laser power	20000W / 15000W / 12000W / 8000W / 6000W / 4000W / 3000W / 2000W / 1500W / 1000W
Position precision	0.05mm
Repeated position precision	0.03mm

	F one-bed laser cutter
Model	F3015	F4020	F6020	F6025
Exterior size	4550x2300x2000mm	5500x3000x2000mm	8010x3000x2000mm	8200x3500x2000mm
Cutting size	3048x1524mm	4000x2000mm	6100x2000mm	6100x2500mm
Laser power	6000W / 4000W / 3000W / 2000W / 1500W / 1000W
Position precision	0.03mm	0.05mm	0.05mm	0.05mm
Repeated position precision	0.02mm	0.03mm	0.03mm	0.03mm
Maximum interconnection speed	140m/min

	I small laser cutter
Model	i3	i5	i7
Exterior size	2200x1750x1870mm	2630x2200x1940mm	4960x2280x2200mm
Cutting size	600x600mm	1000x1500mm	3048x1524mm
Laser power	4000W / 3000W / 2000W / 1500W / 1000W
Position precision	0.01mm	0.03mm	0.03mm
Repeated position precision	0.004mm	0.02mm	0.02mm
Maximum interconnection speed	80m/min	60m/min	100m/min

	T230 / T230A pipe laser cutter
Model	T230	T230A
Exterior size	13500x3200x2500mm	13500x6500x2500mm
Cutting size	6500mm	6500mm
Laser power	4000W / 3000W / 2000W / 1500W / 1000W	4000W / 3000W / 2000W / 1500W / 1000W
Position precision	0.05mm	0.05mm
Repeated position precision	0.03mm	0.03mm
X-axis maximum speed	100m/min	100m/min
Y-axis maximum speed	95m/min	95m/min
Circular pipe size	∅20 - ∅230mm	∅20 - ∅230mm
Rectangular pipe size	∅20x20 - ∅160x160mm	∅20x20 - ∅160x160mm
	170mm Rectangular tube side length ∅20mm	170mm Rectangular tube side length ∅20mm
	Circumscribed circle diameter ∅230mm	Circumscribed circle diameter ∅230mm

	X260 / X260A premium pipe laser cutter
Model	X260	X260A
Exterior size	13500x3200x2600mm	13500x6500x2600mm
Cutting size	6500mm	6500mm
Laser power	4000W / 3000W / 2000W / 1500W / 1000W	4000W / 3000W / 2000W / 1500W / 1000W
Position precision	0.05mm	0.05mm
Repeated position precision	0.03mm	0.03mm
X-axis maximum speed	120m/min	120m/min
Y-axis maximum speed	90m/min	90m/min
Circular pipe size	∅20 - ∅260mm	∅20 - ∅260mm
Rectangular pipe size	∅20x20 - ∅180x180mm	∅20x20 - ∅180x180mm
	200mm Rectangular tube side length ∅20mm	200mm Rectangular tube side length ∅20mm
	Circumscribed circle diameter ∅260mm	Circumscribed circle diameter ∅260mm

	G12 / G16 / G20 large laser cutter
Model	G20	G16	G12
Exterior size	24300x5500x1800mm	20000x5500x1800mm	15700x5500x1800mm
Cutting size	20500x3200mm	16500x3200mm	12500x3200mm
Laser power	30000W / 20000W / 15000W / 12000W / 10000W / 8000W / 6000W
Position precision	0.02mm
Repeated position precision	0.01mm
X/Y maximum interconnection speed	80m/min
