Table top laser marking machine
HOME>Laser>Table top laser marking machine
- YF200&L100
Table top laser marking machine - Easy non-contact marking on various shapes of parts, name plate and parts through the laser beam of Table top fiber laser marking machine Fiber laser is highly versatile, so can mark metals and
some plastic materials
Features of Table top fiber laser
Machine specifications

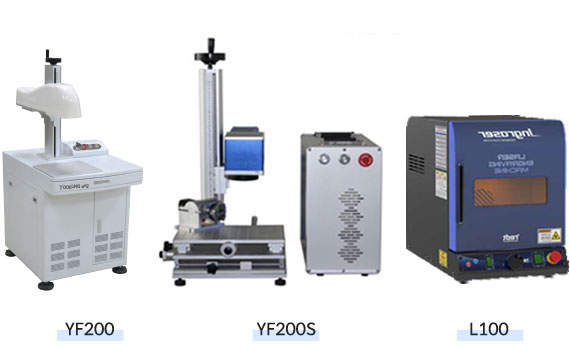

| YF200 | YF200S | L100 | |
|---|---|---|---|
| Laser type | Fiber laser | ||
| Exterior | Work table All in One | Stand type | Bench top(cover type) |
| Size | 600x700x1470mm | 400x600x720mm | 315x422x570mm |
| Application | name plate, parts marking | Jewelry, name plate, pendant | |
| Work area | 100x100, 200x200mm | 70x70x45(z)mm | |
| Laser power | Standard 20W (optional 30W,50W) | ||
| Software | EzCad | Impression | |
| Laser wavelength | 1064nm | ||
| Beam quality | M2:1.2~1.8 | M2<1.5 | |
| Marking speed | 7000mm/s | 3000mm/s | |
| Frequency | 20Khz~100Khz | 1~400Khz | |
| Weight | 60kg | 35kg | 45kg |
| Power consumption | <500W | <400W | |
| Power | 220V / 60Hz | AC 100~240V 50/60Hz | |
| Cooling | Air-cooling | ||
| Laser source lifespan | 100,000 hours | ||
Industrial laser marking application
Various name plate marking, parts marking, tools marking, electronic component marking,
plastic part serial number, 2D barcode marking
Personal goods laser marking application
High-speed marking on various metals, high-quality marking on various personal goods including ring,
pen marking clamp, jewelry, pendant, pet products, etc.
