Laser marking for integration
HOME>Laser>Laser marking for integration
- F series
Complete range of integrable laser
marking system - Compact and robust Technifor laser F20 are fully PPC
(Program-to-program communication) compatible to easily
integrate marking requirements in your production process.

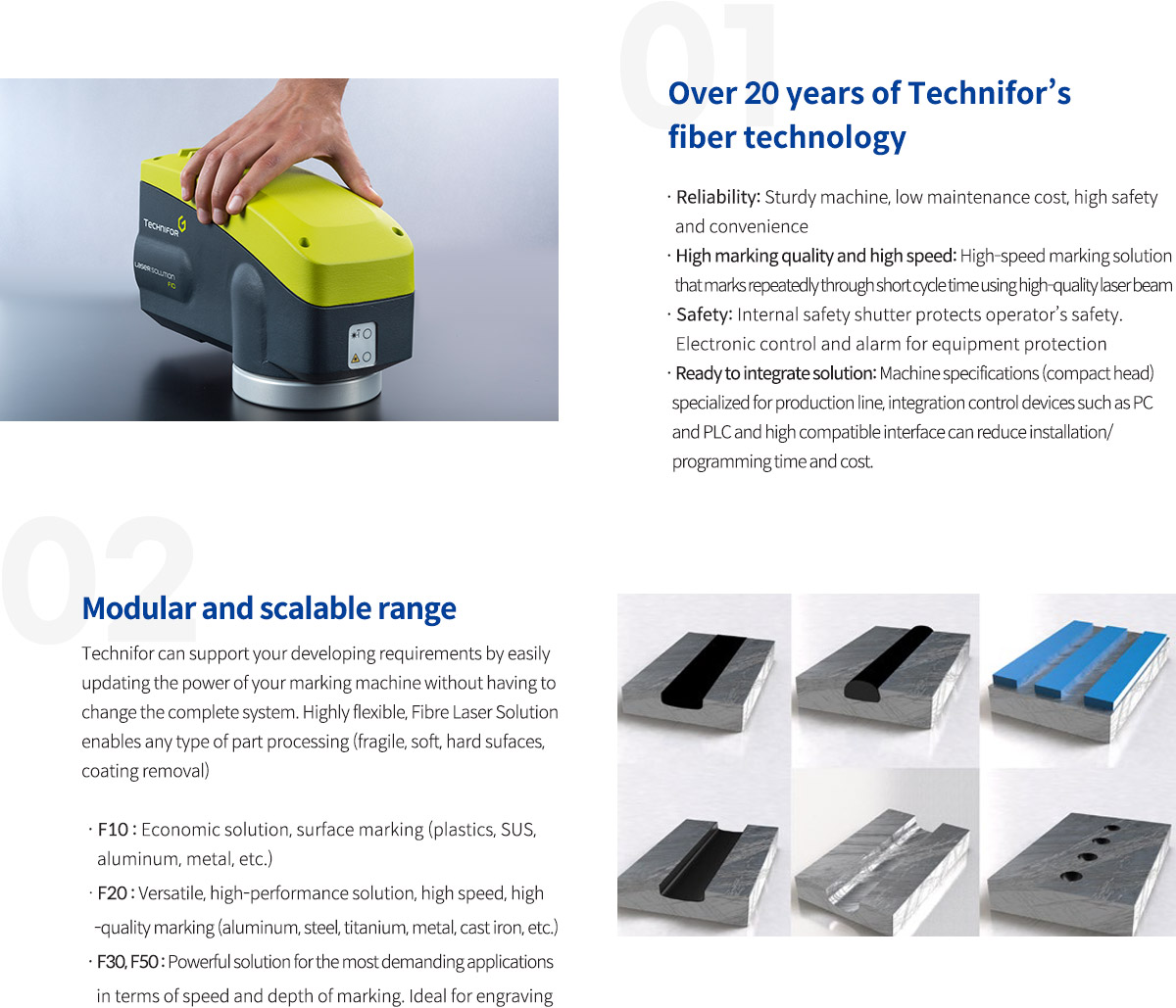

Features of laser marking machine for integration
UC controller features
Machine specifications
| F10 | F20 | F30 | F50 | ||
|---|---|---|---|---|---|
| Output | 10W | 20W | 30W | 50W | |
| Frequency | 20Khz ~ 100Khz | 30Khz ~ 100Khz | 50Khz ~ 100Khz | ||
| Wavelength | 1064nm | ||||
| Safety grad | Class4 | ||||
| Power | 100 ~ 240 VAC / 50~60HZ | ||||
| Power consumption | 400W(700W Max) | ||||
| Marking specification | ||
|---|---|---|
| Marking speed | 4,000mm/s | |
| Marking precision | 10µm | |
| Repeated marking error | 2µm | |
| Beam spot size | 100µm | |
| IP Level | head | IP-54 |
| Controller | IP20 | |
| Interface specification | ||
|---|---|---|
| Interface | Ethernet, Profinet, 8I/8O, Dedicated I/O(SUB D37), RS232, USB(x3) | |
| Laser trace software OS | Windows XP, Windows Vista, Windows 7&8, Windows10 | |
| Repeated marking error | 2µm | |
| Marking type | font | Technifor original font (Basic 17 types + optional + customized) |
| Barcode | Code39 / Code128 / Code93 / Code11 / Codabar / EAN13 / EANB | |
| 2D code | DataMatrix ECC200 / QR code /Micro QR code / UID | |
| Logo image | Compatible file type: BMP, DXF, EPS, IGES, JPEG, PNG, TIFF, etc. | |
| Machine specification | ||
|---|---|---|
| Fiber cable length | 3m | |
| Weight | head | 8.3kg |
| Controller | 16.6kg | |
| Marking head direction setting | available in all directions | |
Accessory options

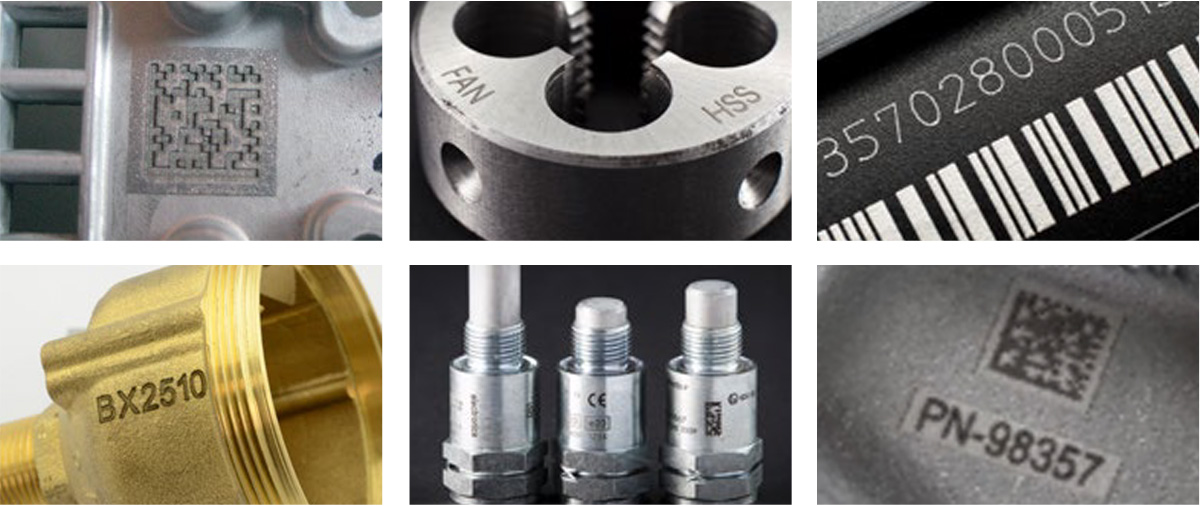

Industrial laser marking application
Can be used for various purposes in all industries.
