- SIA
Dot peen marking machine
for Integration - Compact marking head and controller and simple
communication connection for Integration

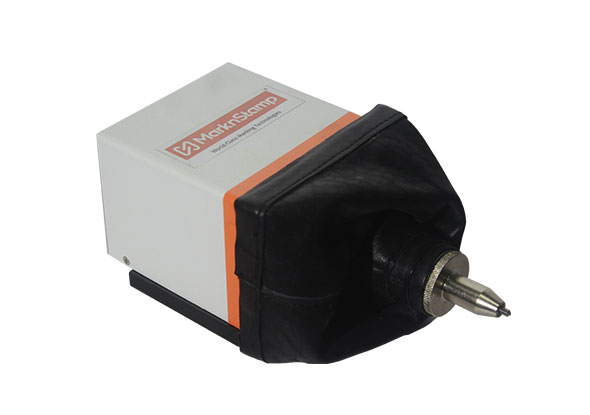

Marking head
- Features
- ㆍCompact marking heads for easy placement and approach
on automation device
ㆍRexin Bellows for protection form dust and ingress
ㆍMarking area available up to maximum 150x50
ㆍRugged Aluminum construction to suit industrial environments
ㆍConnecting cables available in multiple lengths to suit
application location
ㆍUse optional holding stands for table top working

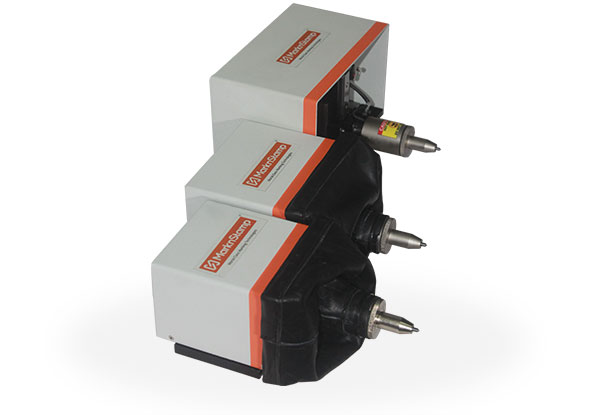

| SIA53 | SIA83 | SIA155 | |
|---|---|---|---|
| Type | Pneumatic Integration marking machine | ||
| Marking area | 50x30mm | 80x30mm | 150x50mm |
| Size | 114.5x270x99mm | 145x270x99mm | 214.5x270x139mm |
| Weight | 2.3kg | 3.3kg | 4.3kg |

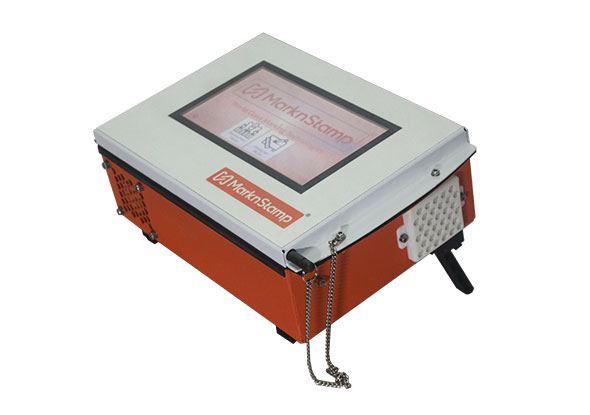

CN03 touch-type controller
- Features
- ㆍStrong Steel construction
ㆍ7” Resistive touch screen for industrial use
ㆍMount controller as table top, wall mounted or Panel mounted
ㆍSimple to use and understand user interface
ㆍMultilingual user interface in 22 languages
ㆍPowerful feature of Jog to accurately position tool
ㆍMark alphanumeric text, number, DXF or PLT logos,
Datamatrix or QR code
ㆍVarious fonts use
ㆍRS232 port for ASCII & Modbus RTU over RS485 for PLC or SCADA
communication
ㆍUsed for EtherCAT/ProfiNET or similar communications
using suitable converters
| CN03 | |
|---|---|
| Type | Pneumatic controller touch type |
| Size | 185x285x112.5mm |
| Weight | 3kg |
| Connection cable | Standard cable 6m |
| Language | 22 languages including Korean |
| Power | 110 - 240V AC |
| Communication | RS232 & 485 IO, USB |
