XF510
HOME>Dot peen>Integration Dot peen marking machine>XF510
- XF510pㆍXF510r
Integration Dot peen marking machine - XF510p

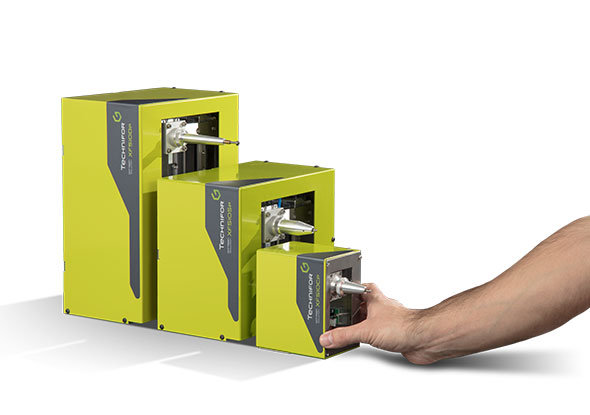

XF510p Pneumatic peen marking machine of X-tra fast, X-tra small
is right solution for a fast-paced production environment.
XF510r
Scribing type low-noise marking machine suitable for chassis, pipe, vehicle exhaustion parts production enviroment. Independent use available through PLC, PC connection

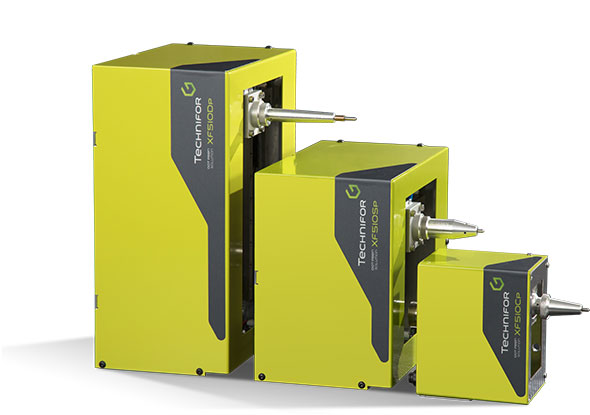

XF510p pneumatic marker
- Features

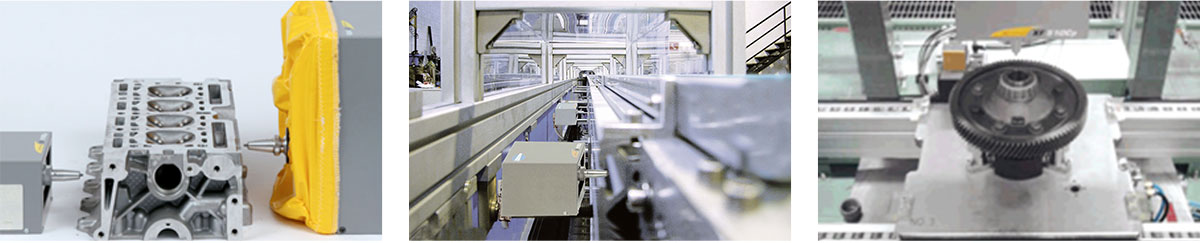

- ㆍRotating, fixed installation available for integration
ㆍVarious data marking available such as serial number,
barcode, logo, etc.
ㆍMarking file preview, simulation function
ㆍFast marking speed of maximum 10 characters per a second
ㆍHigh marking quality and durability
ㆍOver 1000 marking files can be saved
ㆍOver 30 years of proven marking technology of Technifor
| XF510Cp | XF510Sp | XF510Dp | |
|---|---|---|---|
| Type | Pneumatic equipment marker | ||
| Marking area | 50x20mm | 100x80mm | 200x80mm |
| Size | 136.4x86.7x114.7mm | 219x237x146mm | 319x237x146mm |
| Weight | 2.35kg | 7.8kg | 9.7kg |
| Controller | UC500 | ||
| Connection cable | 3m, 6m, 10m, 15m | ||
| Language support | Over 20 languages including Korean | ||
| Power | 90-230VAC | ||
| Communication | RS232, USB, ethernet, IO | ||
| Accessories | Protective shutters, booth, Rotary device, 90° elbow connector, etc. | ||

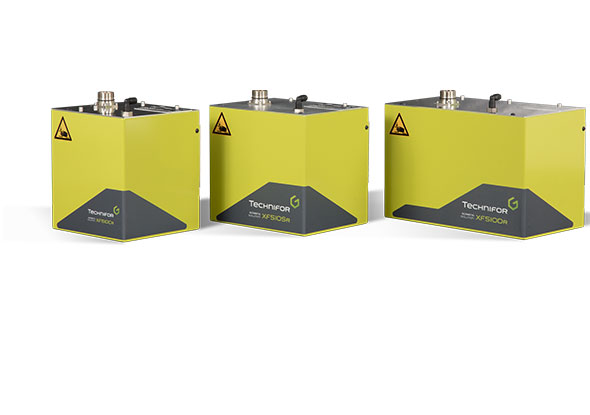

XF510r Scribing marking machine
- Features

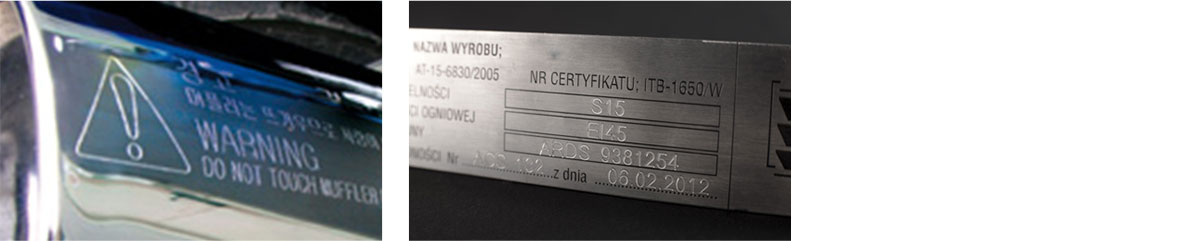

- ㆍLow-noise marking available for hollow pipe or metal sheet
ㆍBetter marking quality than regular marking method, so it can be used in final product
ㆍCommunication interface: Marking start, Cycle completed,
Cycle stop, machine ready, Marking in progress
ㆍDeep marking : before or after treatment(painting, sandblasting, short-blasting)
| XF510Cr | XF510Sr | XF510Dr | |
|---|---|---|---|
| Type | Pneumatic scribing marking machine | ||
| Marking area | 40x50mm | 80x50mm | 160x50mm |
| Size | 182x167x199.5mm | 222x167x199.5mm | 302x167x199.5mm |
| Weight | 18kg | 20kg | 23kg |
| Controller | UC500 | ||
| Connection cable | 3m, 6m, 10m, 15m | ||
| Language support | Over 20 languages including Korean | ||
| Power | 90-230VAC | ||
| Communication | RS232, USB, ethernet, IO | ||
| Accessories | Protective shutters, booth, Rotary device, 90° elbow connector, etc. | ||

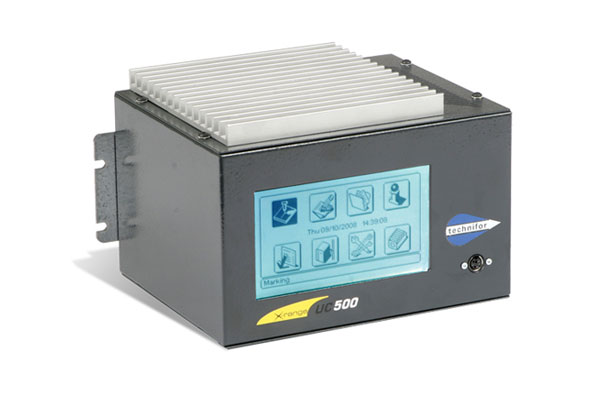

UC500 Controller features
- UC500 Controller
- ㆍStandard equipment: RS232, USB, ethernet connection and I/O
ㆍMultilingual keyboard and multilingual support
ㆍCommunication interface: Marking start, Cycle completed,
Cycle stop, Machine ready, Marking in progress
ㆍIntuitive icons and pop-up help
ㆍMultilingual user interface in 22 languages
ㆍEasy program input: Text, variable data, shape, 2D barcode, etc.
