Grid Cleaner
HOME>Laser>Laser Machine>Grid Cleaner
- YS100

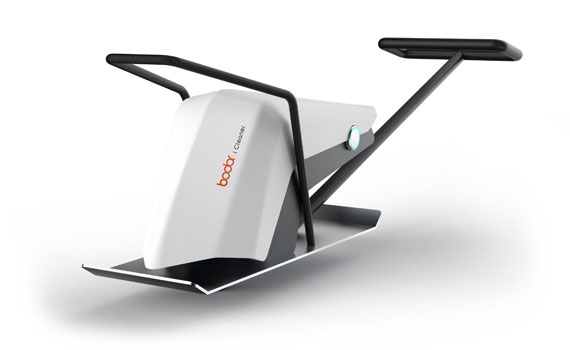

Grid Cleaner - YS100 machine cleans sludges of grids for laser cutting process.
YS100 is fast and simple.
YS100 grid cleaner features
Machine specifications
| YS-100 | |
|---|---|
| Slate thickness | 2 ~ 3.9mm |
| Laser output | 2 ~ 7kw |
| Material | SUS, steel, aluminum |
| Maximum slag thickness | 25mm |
| Minimum distance between slates | 33.5mm |
| Operation speed | 4 ~ 8m/min |
| Motor output | 1400W |
| Weight | 16.3kg |
Industrial Grid Cleaner application
- Features
- ㆍOperation completed in 30 minutes with a single operator
ㆍYS100 grid cleaners works on one line and same direction
ㆍSlugs fall to the ground after cleaning
ㆍCan be used semi-permanently
ㆍIndustry: Laser cutting industry , shipbuilding, steel, heavy industry, marine, plant, steel plate industry
