Low-cost laser engraving machine
HOME>Engraving>CO2 Laser engraving machine>Low-cost laser engraving machine
- Low-cost

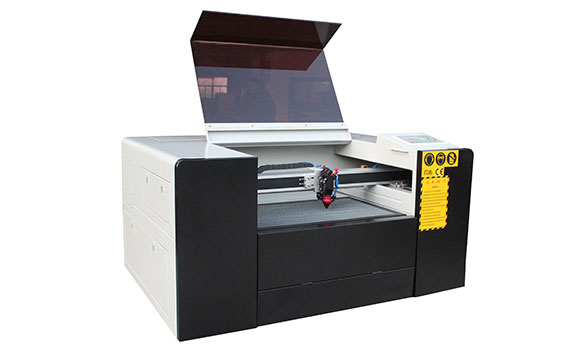

CO2 laser engraving machine - Low-cost CO2 laser engraving machine for cutting and engraving on plastic, acrylics, wood, paper, etc.

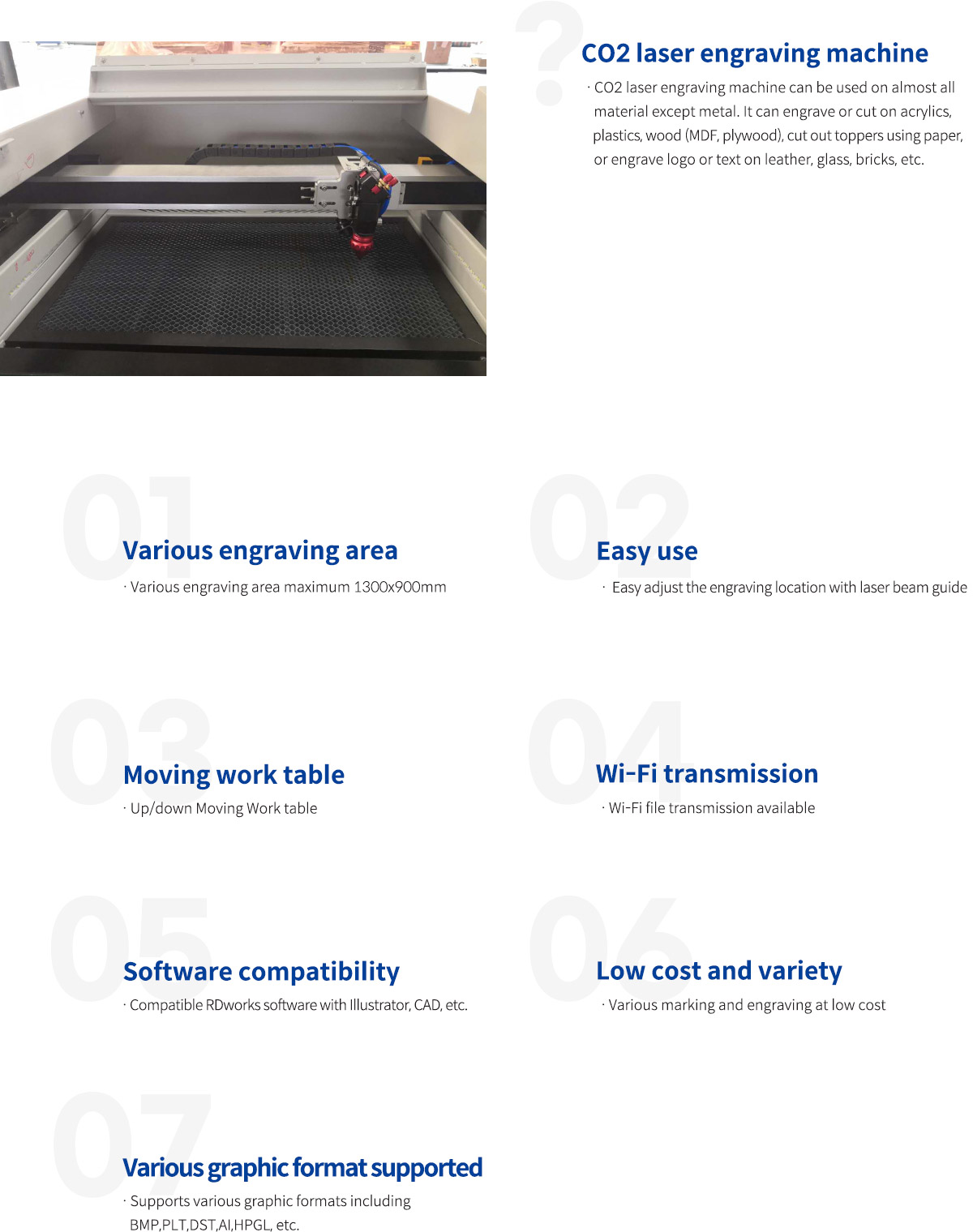

Features
Machine specifications
| RC-5030 | RC-6090 | RC-1390 | |
|---|---|---|---|
| Engraving area | 500x300mm | 600x900mm | 1300x900mm |
| Size | 1140x560x710mm | 1590x1300x1210mm | 2030x1630x1300mm |
| Weight | 160kg | 420kg | 470kg |
| Laser source | Tube type 40W | Tube type 90W | Tube type W6 130W |
| Auto focus | Options | Auto focus Standard option | |
| File transmission | Ethernet or Wi-Fi | ||
| Standard package 1 | Up/down table, honey combo, blade table | Up/down table, honey combo, blade table | |
| Standard package 2 | Air pump, chiller | ||
| Engraving speed | Maximum 60,000mm/min | ||
| Precision | ±0.01mm | ||
| Minimmum text | 1mm | ||
| Power | AC220V±10% 50/60Hz | ||
| Supported graphic format | BMP, PLT, DST, AI, HPGL | ||
| Cooling | Water-cooling chiller | ||
| Control software | RUIDA System | ||
| Compatible software | Coredraw, AutoCAD, Photoshop | ||
| Operating temperature | 0 ~ 45°C | ||
Sample images
Marking, engraving cutting on various materials such as glass, selfie stick, paper, Name plate, brick, wood, baseball bat, etc.

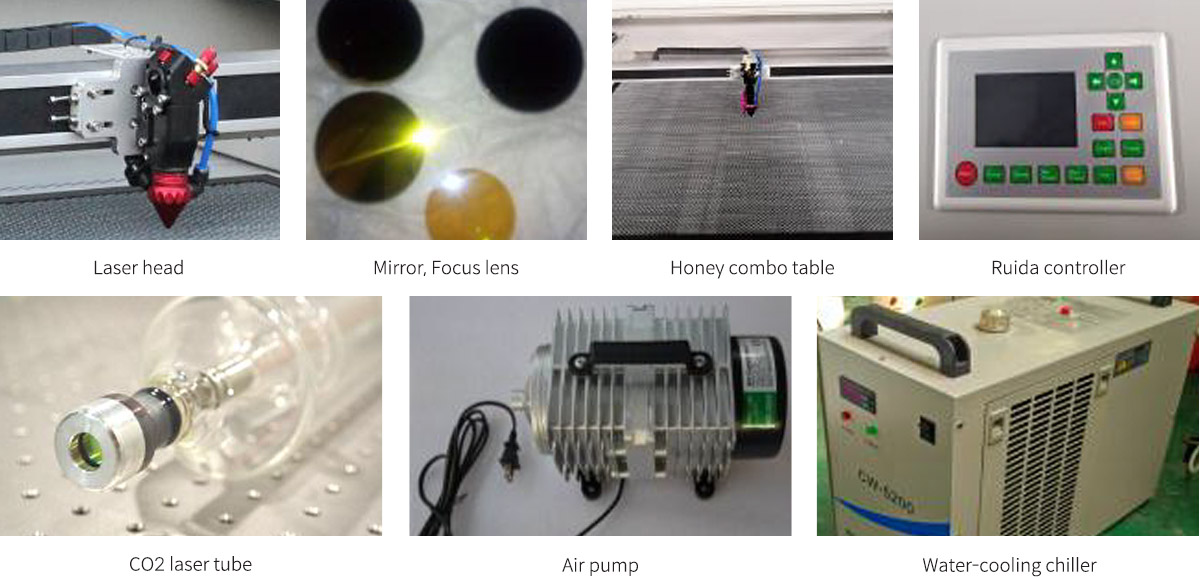

RC-laser engraving machine Standard parts
Laser head, mirror, focus lens, honey combo table, Ruida controller, CO2 laser tube, air pump, water-cooling chiller
