Small CNC Engraving machine
HOME>Engraving>CNC engraving machine>Small CNC Engraving machine

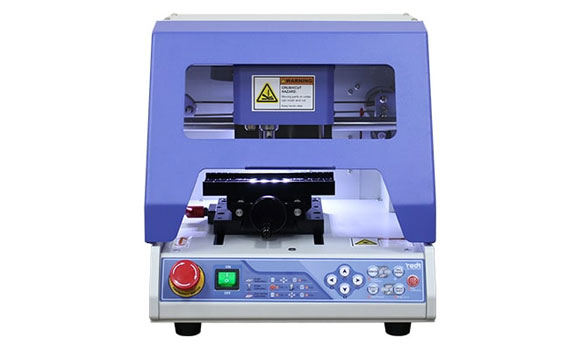

- IMP-30
Mini-sized Nameplate
engraving machine - IMP-30 is a perfect solution for marking or engraving industrial materials. It is easy to use with acoustic noise level, neat design,
compact size and provides easy manual that anyone can acess to engraving. It is a multi-purpose engraver that allows marking and engraving on industrial metal name plates, various metal
materials, acryls, timbers and etc.

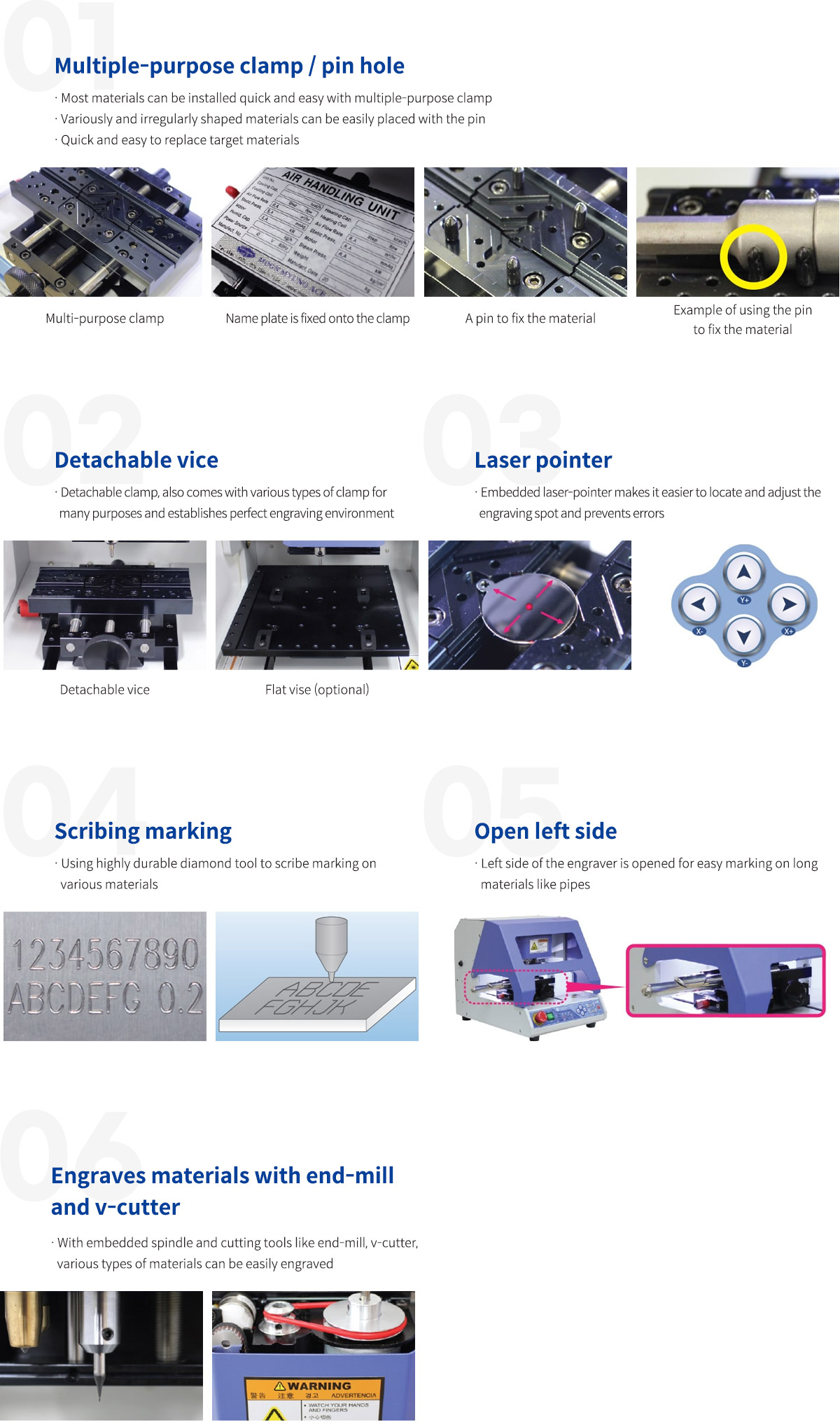

Machine features
Machine specifications
| IMP-30 | IMP-300 | IMP-350 | |
|---|---|---|---|
| Feature | Maximum material height on vice 40mm | Maximum material height on vice 80mm | Built in Automatic lubrication system |
| Size | 288x303x355mm | 470x375x455mm | 470x375x455mm |
| Work area | 120x100x30(Z)mm | 300x200x38.5(Z)mm | 300x200x38.5(Z)mm |
| Resolution | (XY)0.005mm/(Z)0.00125mm | ||
| Tool diameter | 4mm | ||
| Weight | 24.6kg | 38.5kg | |
| Rotation count | 12,000rpm | 10,000 ~ 14,000rpm | |
| Spindle power | 14.7W | 27W | |
| Power consumption | 30W | 50W | |
| Power | AC 100~240V 50/60Hz | ||
Application sample
