Multifunctional CNC Macnine
HOME>Engraving>CNC engraving machine>Multifunctional CNC Macnine

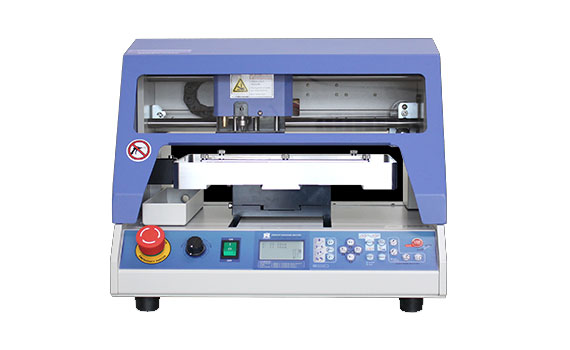

- MAGIC-70
4-axes multifunctional CNC Machine - MAGIC-70 is a multifunctional cutting & engraving machine with
4 axes able to engrave on pendant, the inside of ring/bangle, the outside of ring/bangle with beautiful and indelible letters or
patterns quickly and easily. It is good for 2D carving on wax,
metal, acrylic, wood and metal, 3D carving on wax, chemical
wood and is also good for cutting gold, silver, copper, brass,
aluminum plate for name necklaces, etc.

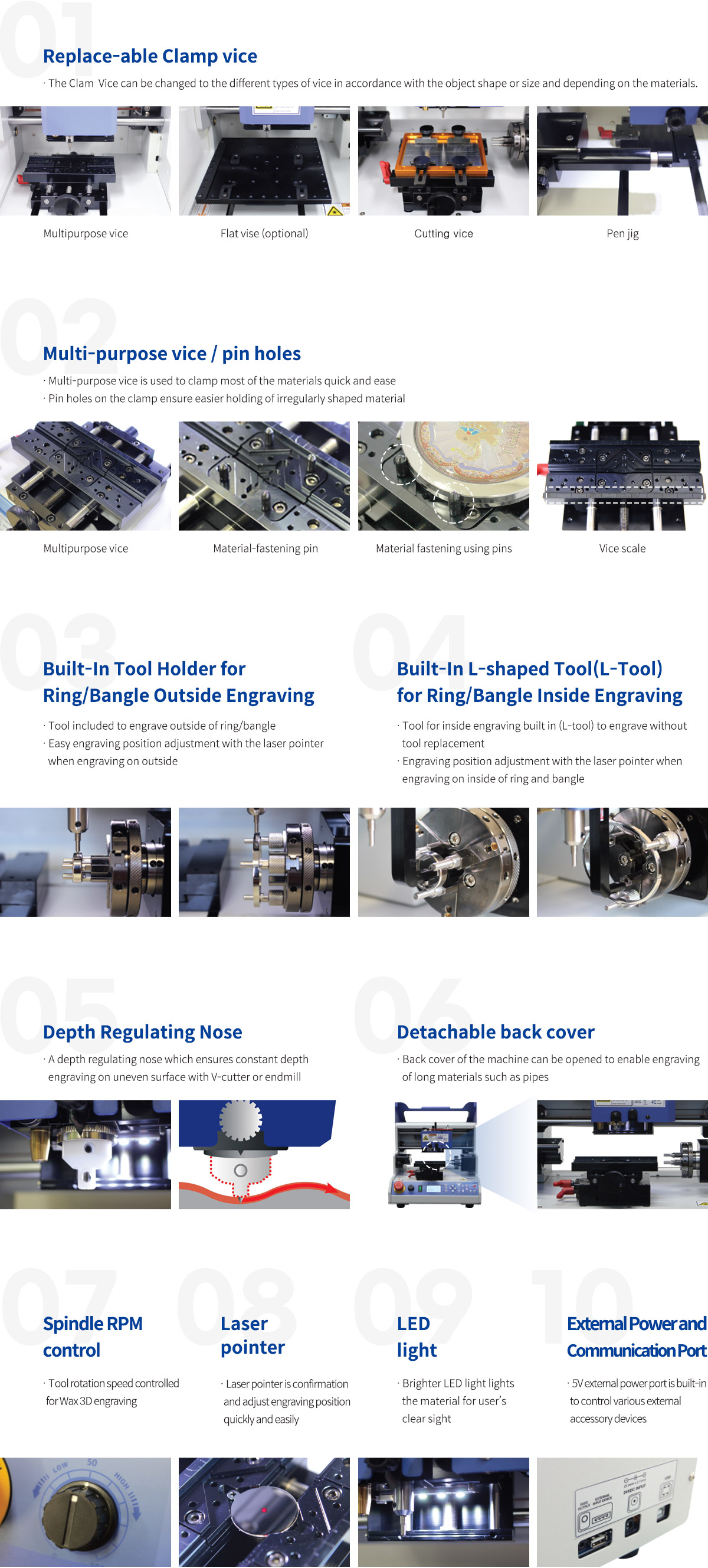

Machine features
Machine specifications
| MAGIC-70 | |
|---|---|
| Size | 395 x 375 x 394mm |
| Cylinder Maximum diameter | Outer diameter 86mm / Inner diameter 14~78mm |
| Work area | 130 x 100 x 38.5mm |
| Spindle count | 15,000RPM |
| Resolution | 0.005mm(XY) / 0.00125mm(Z) / 0.028125°(A) |
| Spindle motor power | 27W |
| Tool diameter | 4mm |
| Power consumption | 47W |
| Weight | 32.5kg |
| Power | AC 100~240V 50/60Hz |

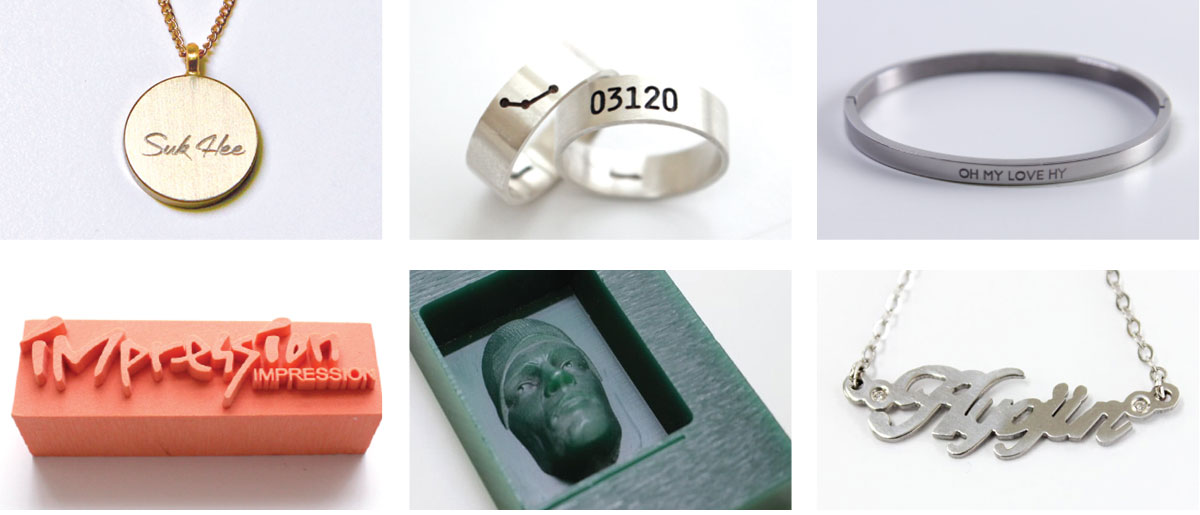

Application sample
